Features:
Simulated sine wave inverter
Built-in AVR for voltage regulation
Wide input voltage range: 90-280 VAC
24VDC
Overload and short circuit protection
LCD display for comprehensive information

Specifications:

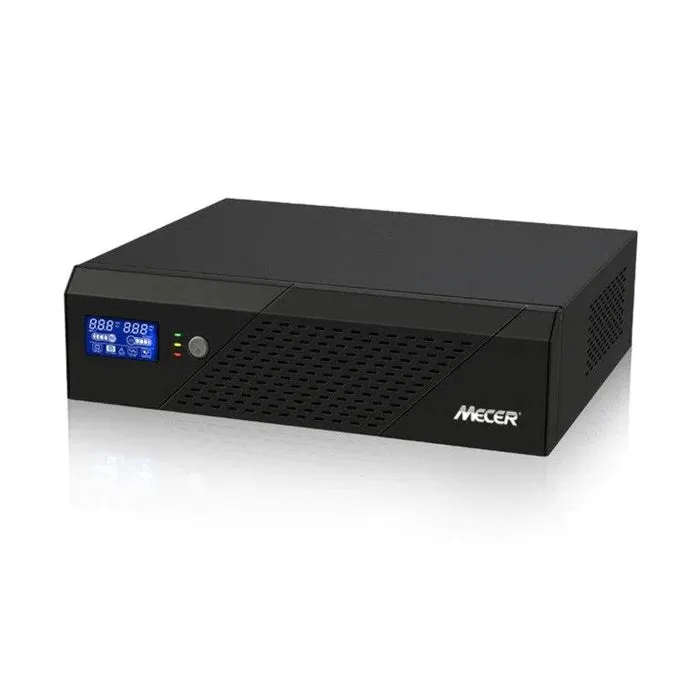

MODEL: Mecer IVR-1200LBK
CAPACITY: 2400 VA / 1440 W
POWER FACTOR: 0.6
Input Voltage range 90-280VAC

Line Mode:
Output Voltage
Bypass mode: 0utput voltage same as input voltage
AVR mode: Output voltage = Input voltage 1.2 at Input voltage - Output Frequency Same as input

Battery Mode:
Output Voltage 230Vac /-10%
Transfer Time 20ms typical
Waveform Modified Sine-wave

Overload Capability:
Bypass Mode (in VA and Watts) Load >110% /-15% , alarm 5 mins then fault
Load >130% /-15%, fault immediately.
AVR Mode (in VA and Watts)at Input voltage > 170VAC Load >100% /-15%, go to bypass mode
AVR Mode (in VA and Watts)at Input voltage < 170VAC Load >60% /-15%, go to bypass mode
Battery Mode (in W) Load>110% /-15%, overload alarm for 15s, and then will switch to fault mode for 10s. Then unit will re-start for 5 times Load>120% /-15% , fault & cut off O/P immediately.

Short Circuit Protection:
Line Mode Breaker
Battery Mode Current limit Firmware Protection

Battery:
Battery Voltage 24 VDC
Acceptable Battery Type Rechargeable lead-acid battery, Deep discharge battery
Polarity Reserve Protection Yes
Charger available I/P range 90~280V
BATTERY’S NOT INCLUDED

Charger:
Constant Current Charger Voltage 28.6VDC /-2%
Floating Charge Voltage 27.4VDC /-2%
Maximum Charge Current 10A or 20A
DC Start Voltage >22VDC

Physical:
Dimension, D X W X H (mm) 350 x 90 x 300
Net Weight (kgs) 5.5

Environment:
Operating Humidity 0 to 90% Relative Humidity(Non-condensing)
Operating Temperature 0 degrees C to 40 degrees C
Storage Temperature -15 degrees C to 50 degrees C

1 Year Warranty

More Information
Short Description Batteries are not included and needs to be bought separately Will not be able to run a kettle, heater or anything that uses a motor or an element.
