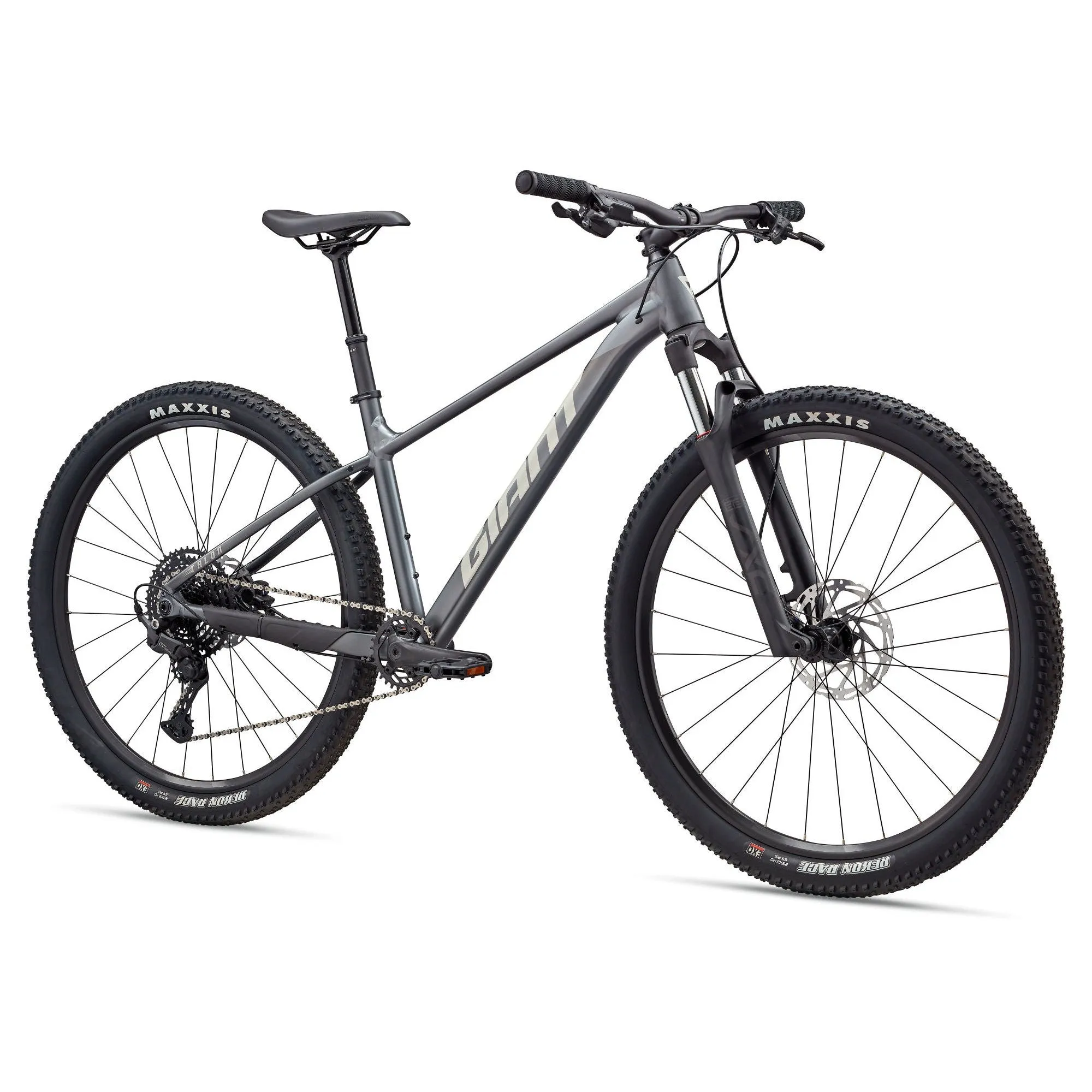

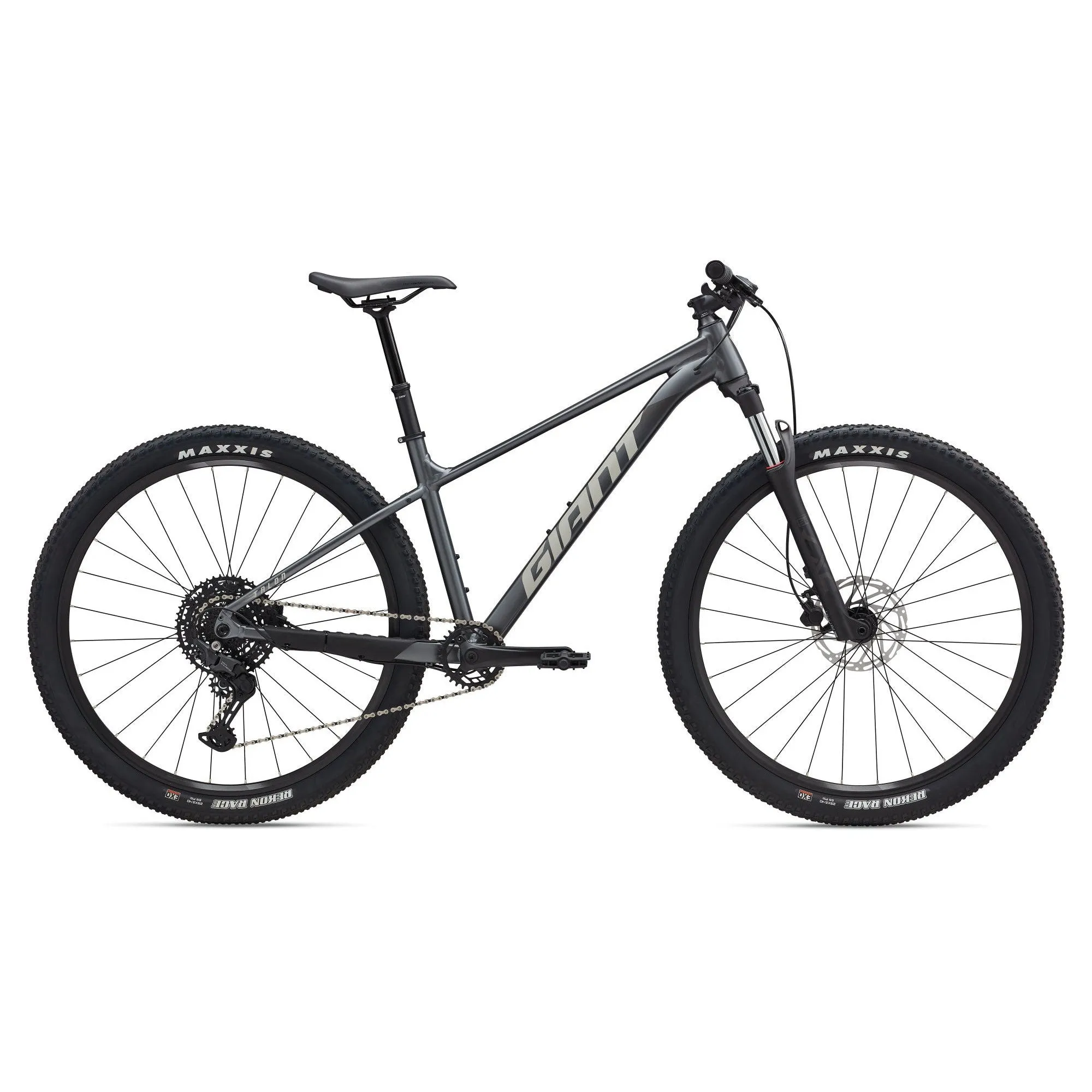

Push the pace on climbs, let loose on descents. This aluminum hardtail with a plush suspension fork delivers balanced, confident handling on the trail.
Key Performance Factors
Proven alloy performance
ALUXX aluminum frameset is hand-built in-house by the world leader in aluminum engineering.
Balance and stability
Frame geometry is designed to optimize the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size).
XC control
Suspension fork offers either 80mm or 100mm of smooth travel for added control on XC terrain.
| Sizes | 27.5: XS, S 29: S, M, L, XL |
| Colors | Charcoal |

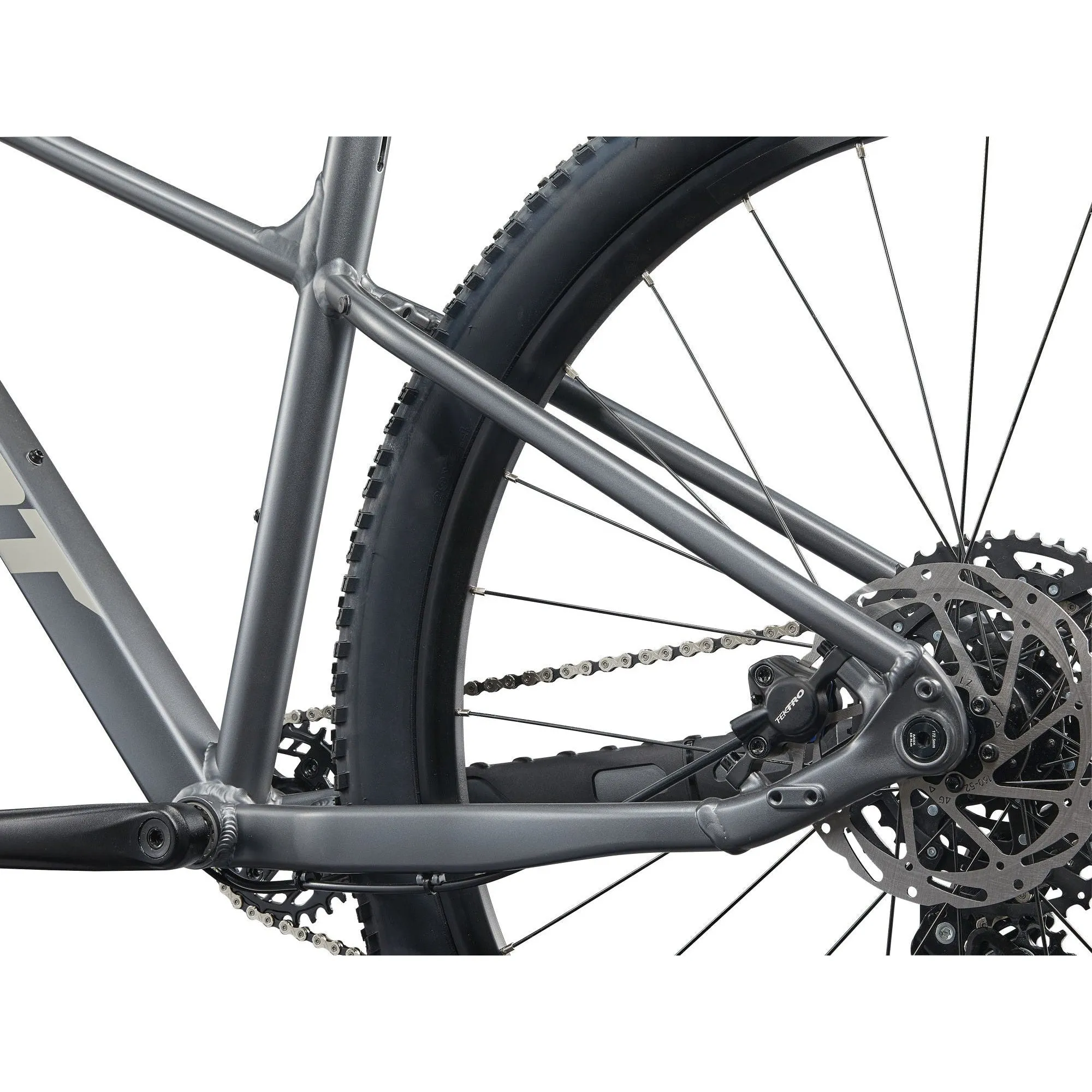

| Frame | ALUXX-Grade aluminium, disc |

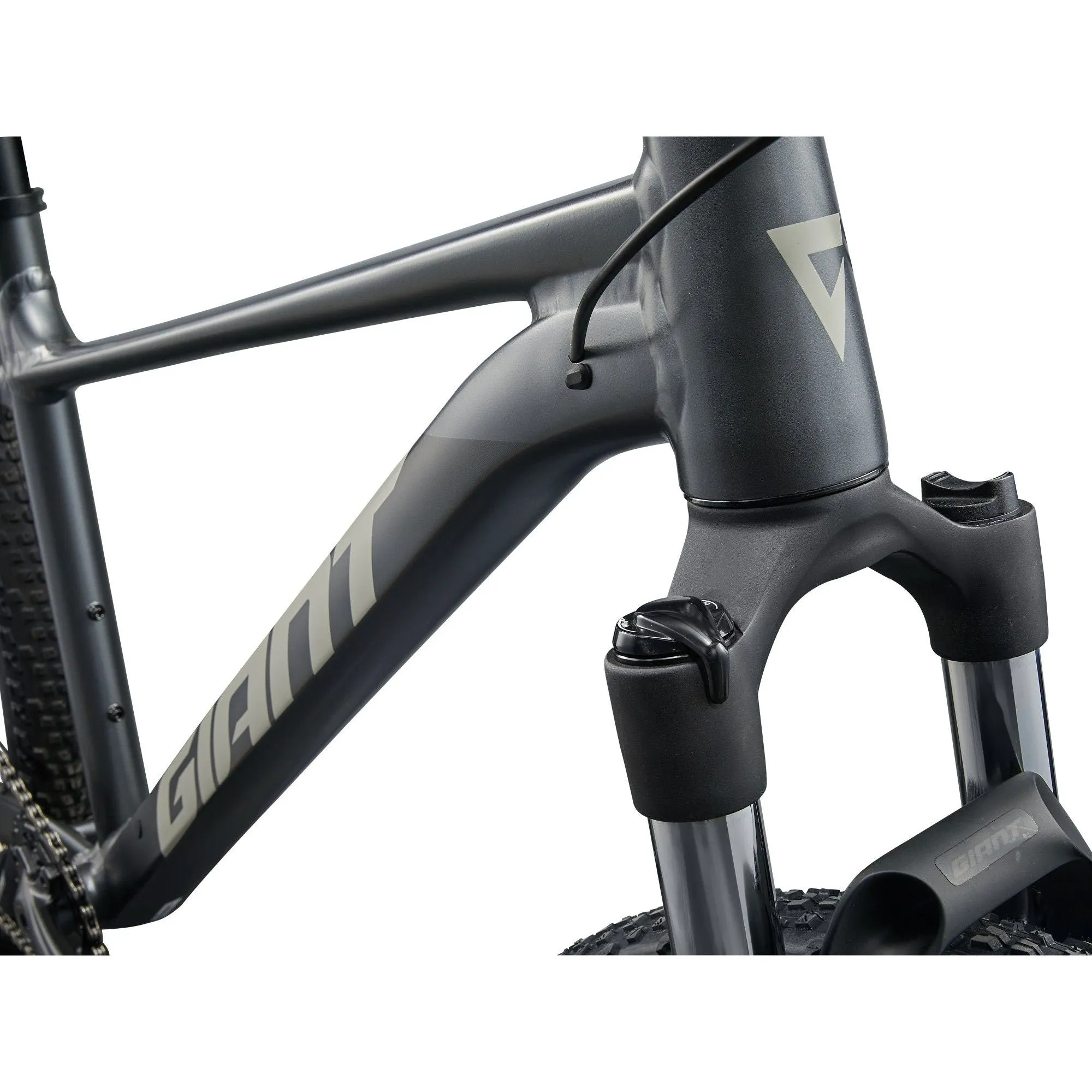

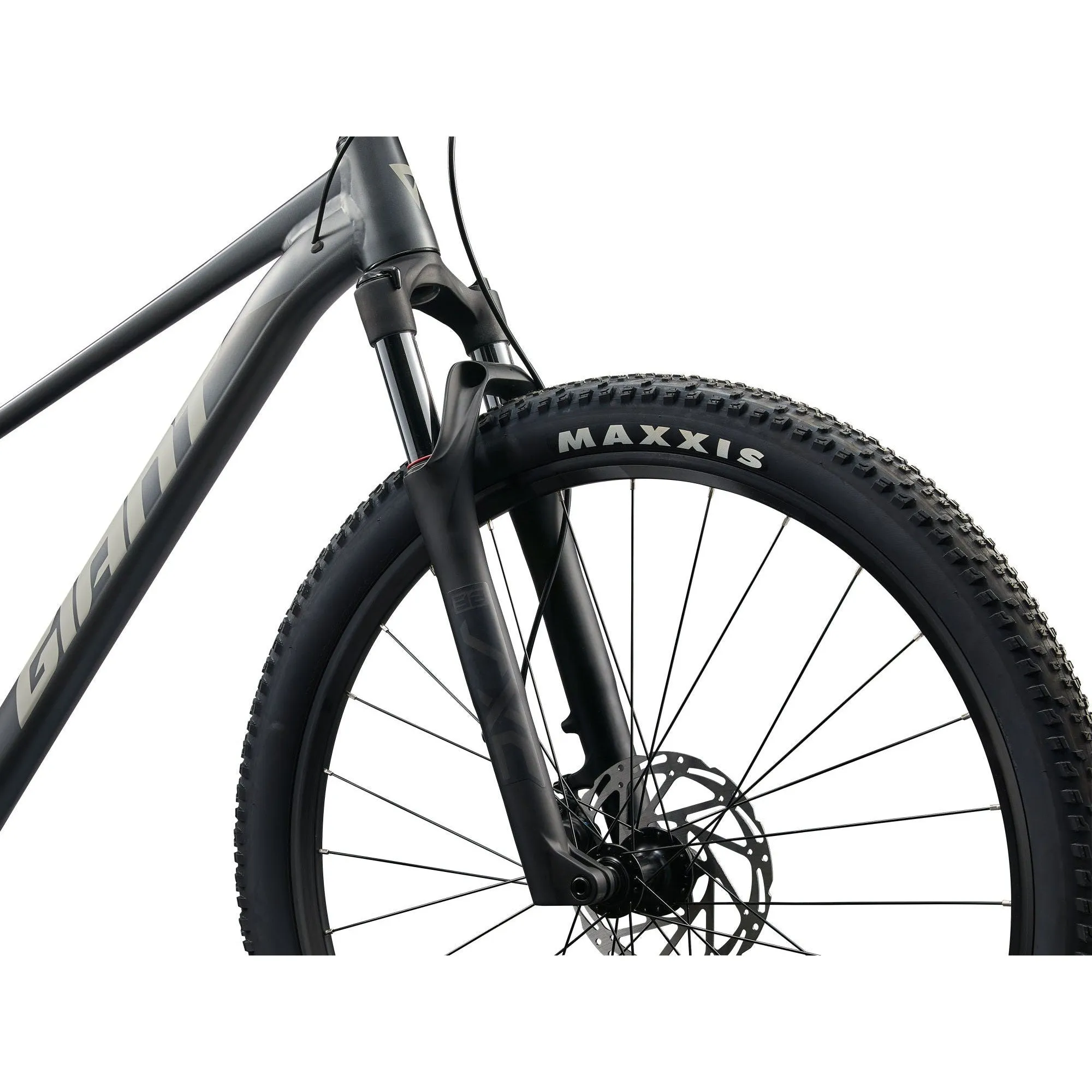

| Fork | SXC32-3 RL, air spring, QR, alloy steerer XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M: 100mm travel (29), L: 100mm travel (29) XL: 100mm travel (29) |
| Shock | N/A |

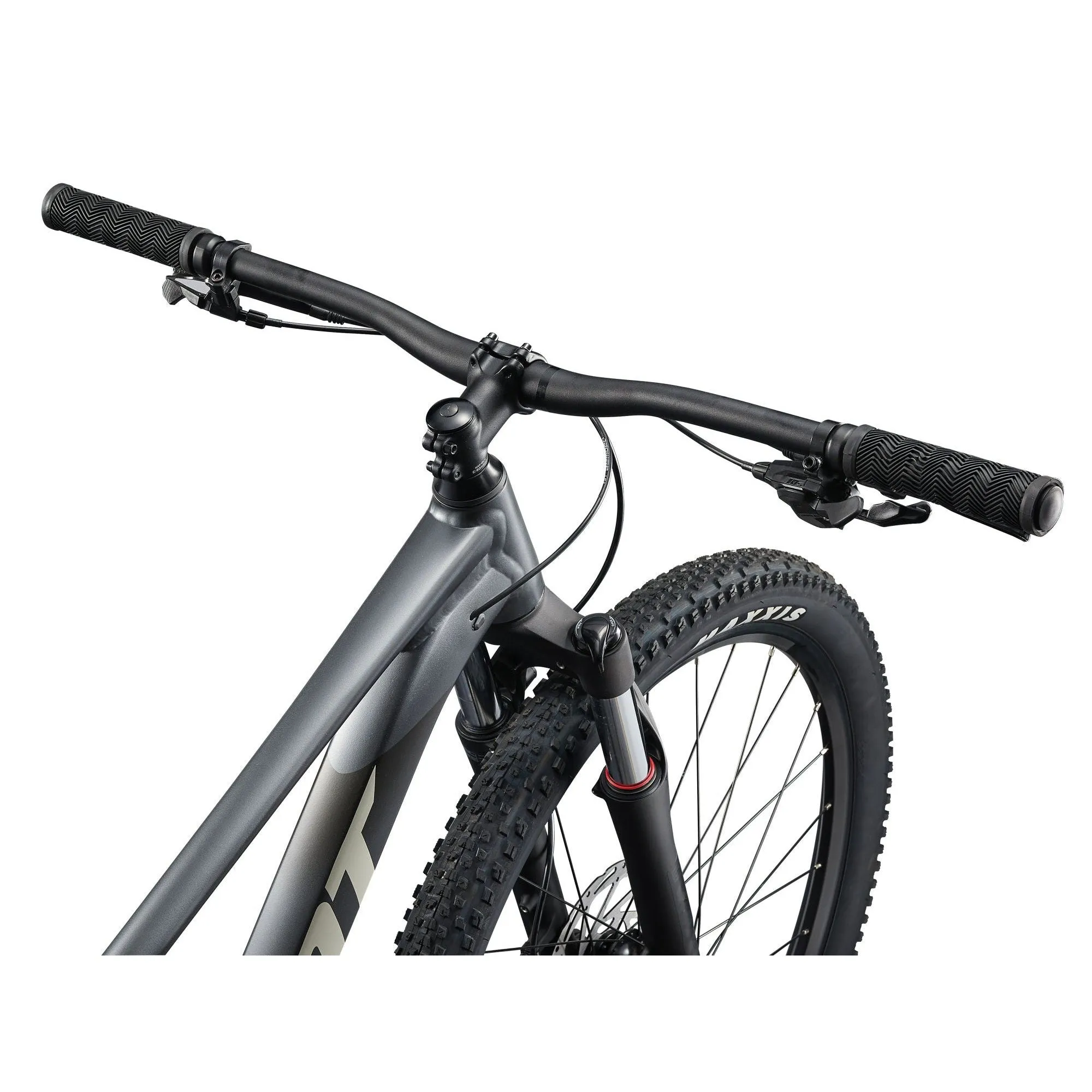

| Handlebar | Giant Connect Trail, 31.8mm |
| Stem | Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29) |

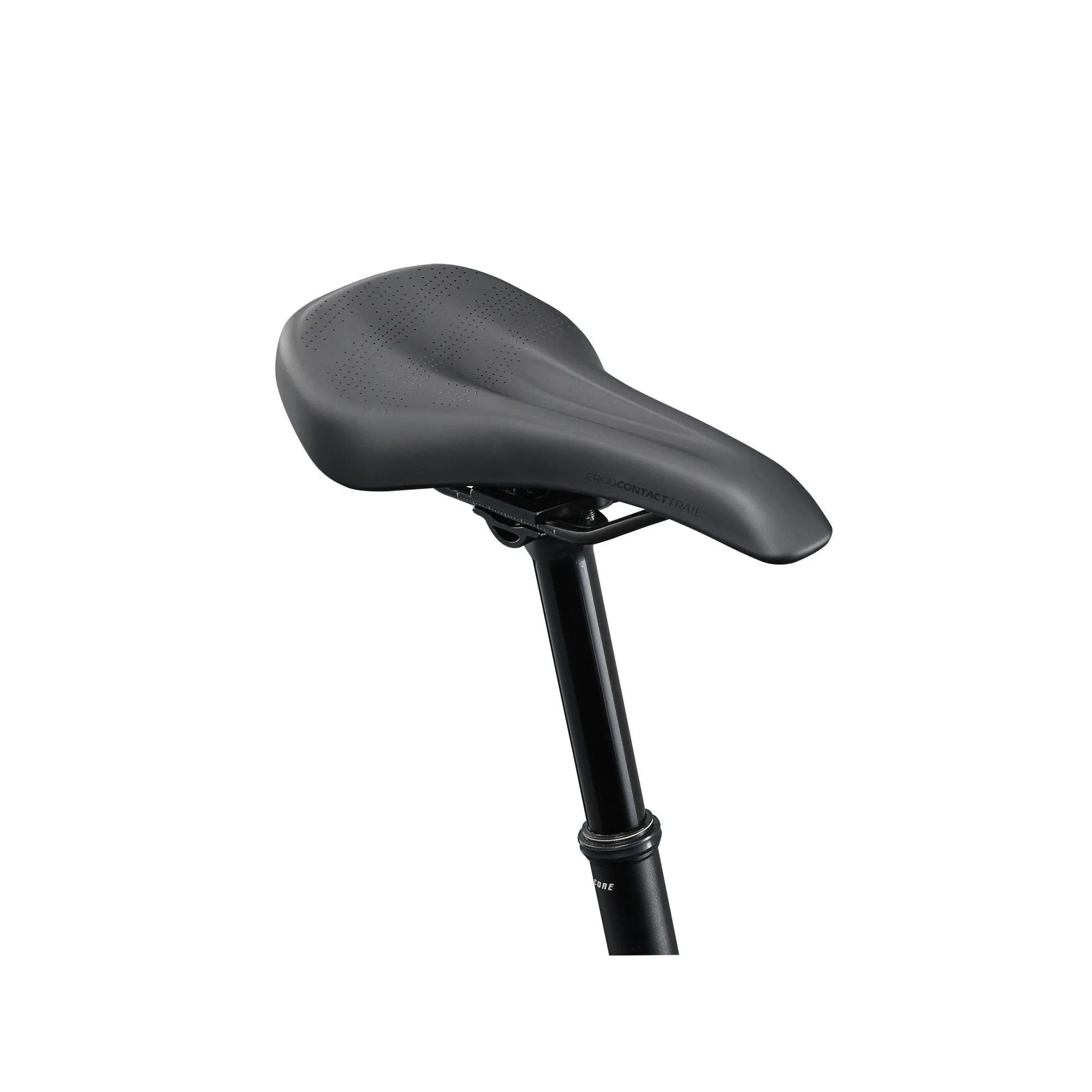

| Seatpost | Giant Contact Switch Core dropper, remote XS: 100mm travel / 30.9 x 350mm S: 100mm travel / 30.9 x 350mm M: 120mm travel / 30.9 x 400mm L: 120mm travel / 30.9 x 400mm XL: 120mm travel / 30.9 x 400mm |
| Saddle | Giant ErgoContact Trail |
| Pedals | MTB caged |
| Shifters | Shimano CUES, SL-6000, 1x10 |
| Front Derailleur | N/A |

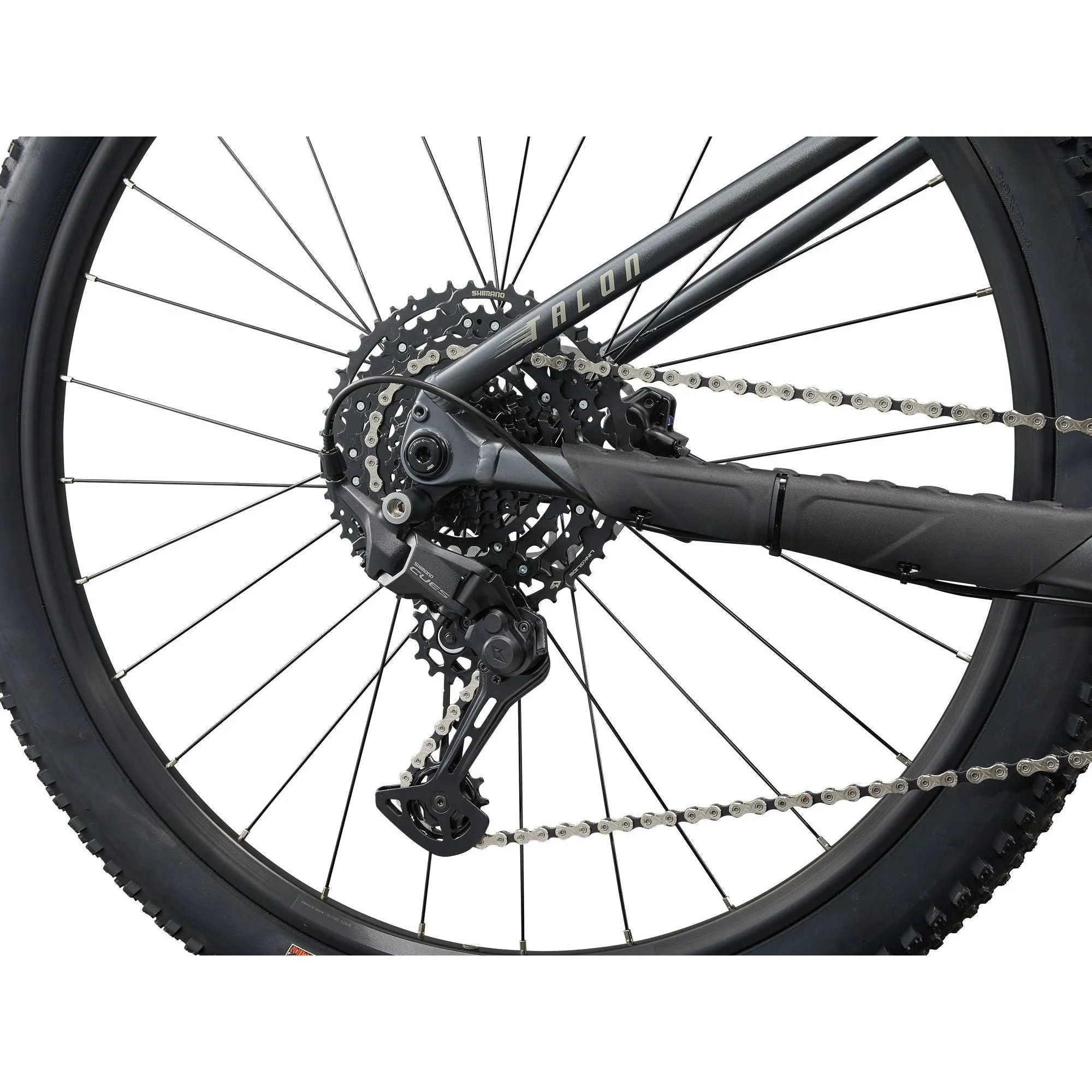

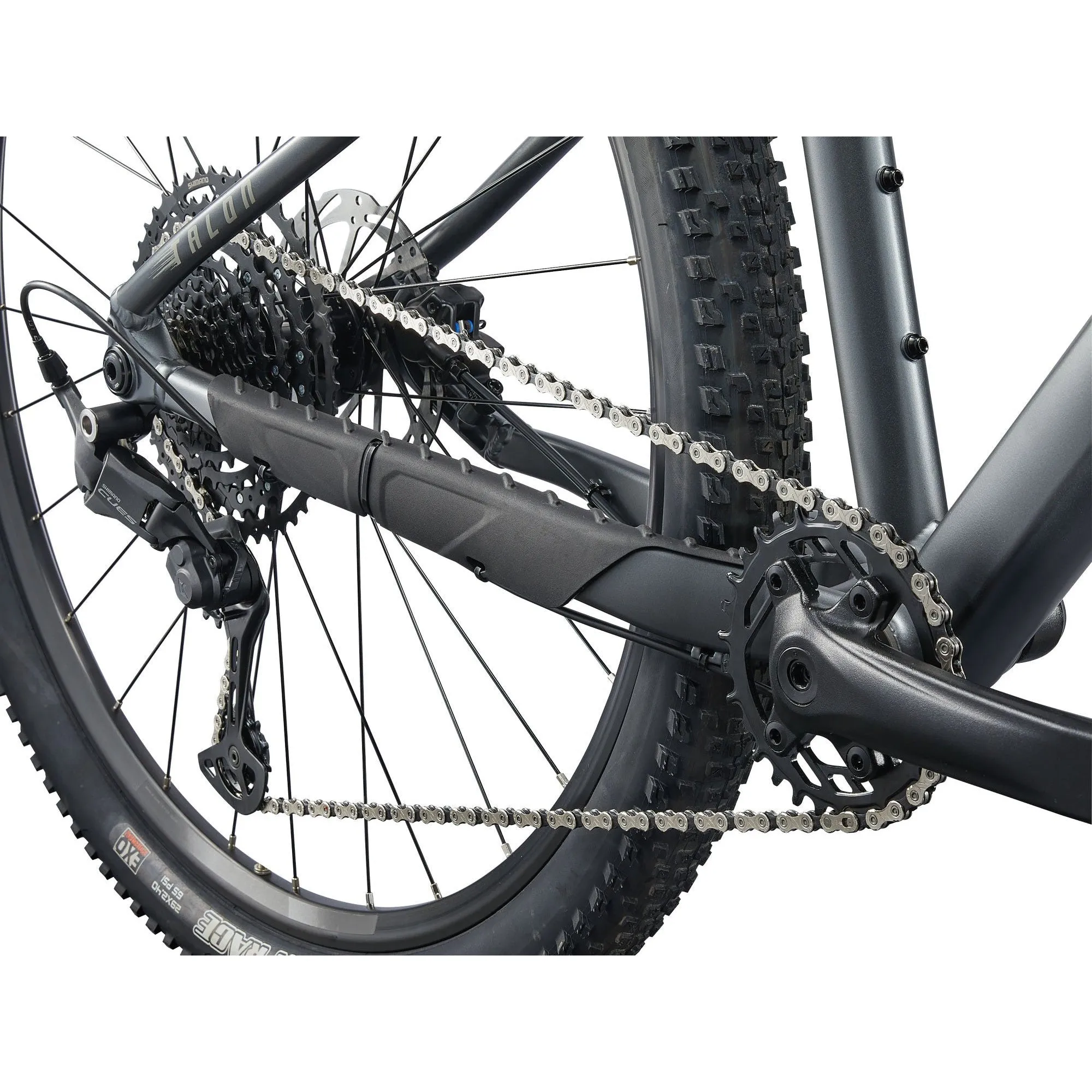

| Rear Derailleur | Shimano CUES, U6000, Shadow |

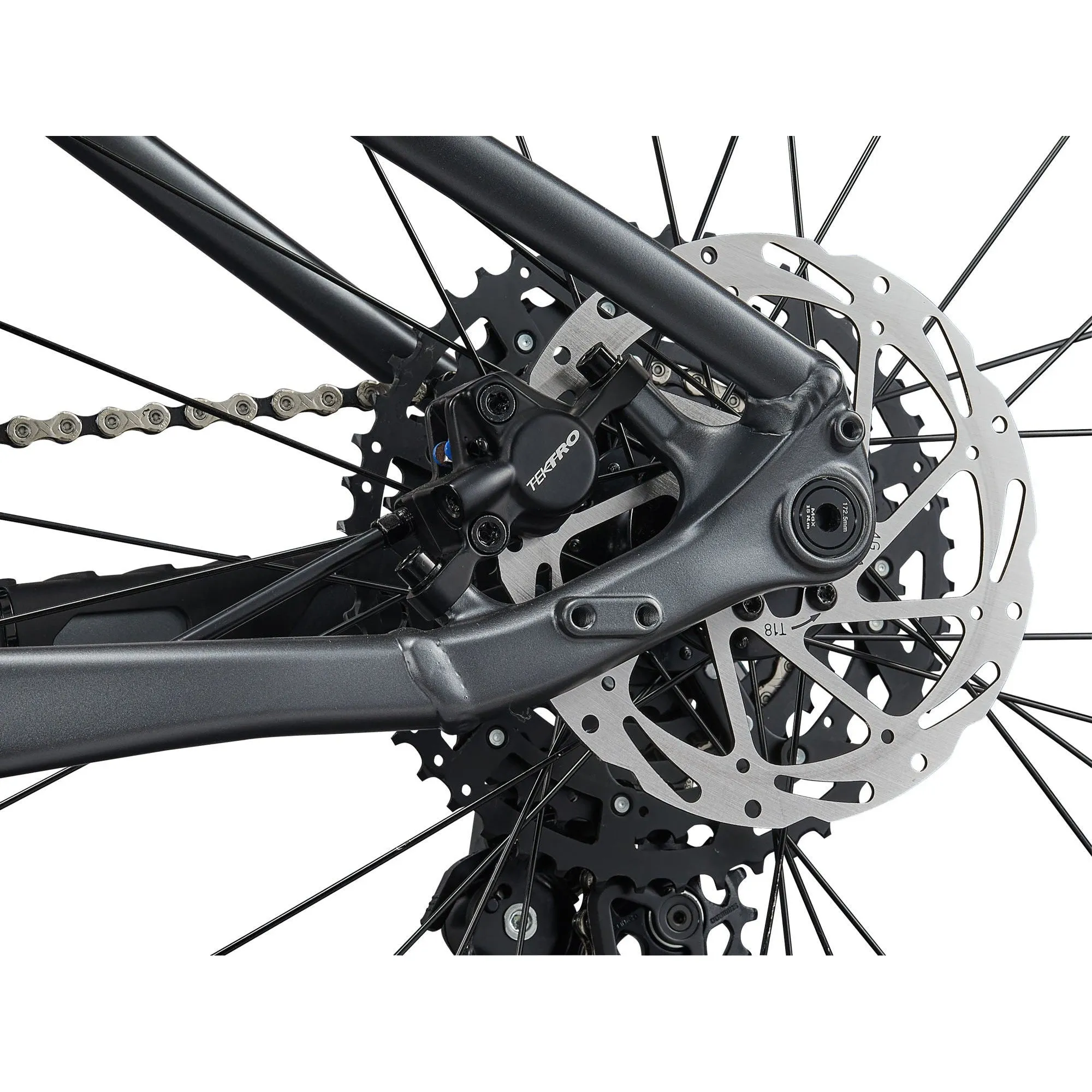

| Brakes | Tektro HDM275, hydraulic, Tektro rotors [F]180mm, [R]160mm |
| Brake Levers | Tektro HDM275 |
| Cassette | Shimano CUES, LG300, 11-48 |
| Chain | KMC X11 |
| Crankset | ProWheel Charm TBC |
| Bottom Bracket | Cartridge |
| Rims | Alloy, sealed |
| Hubs | Alloy, sealed |
| Spokes | Stainless, 14g |

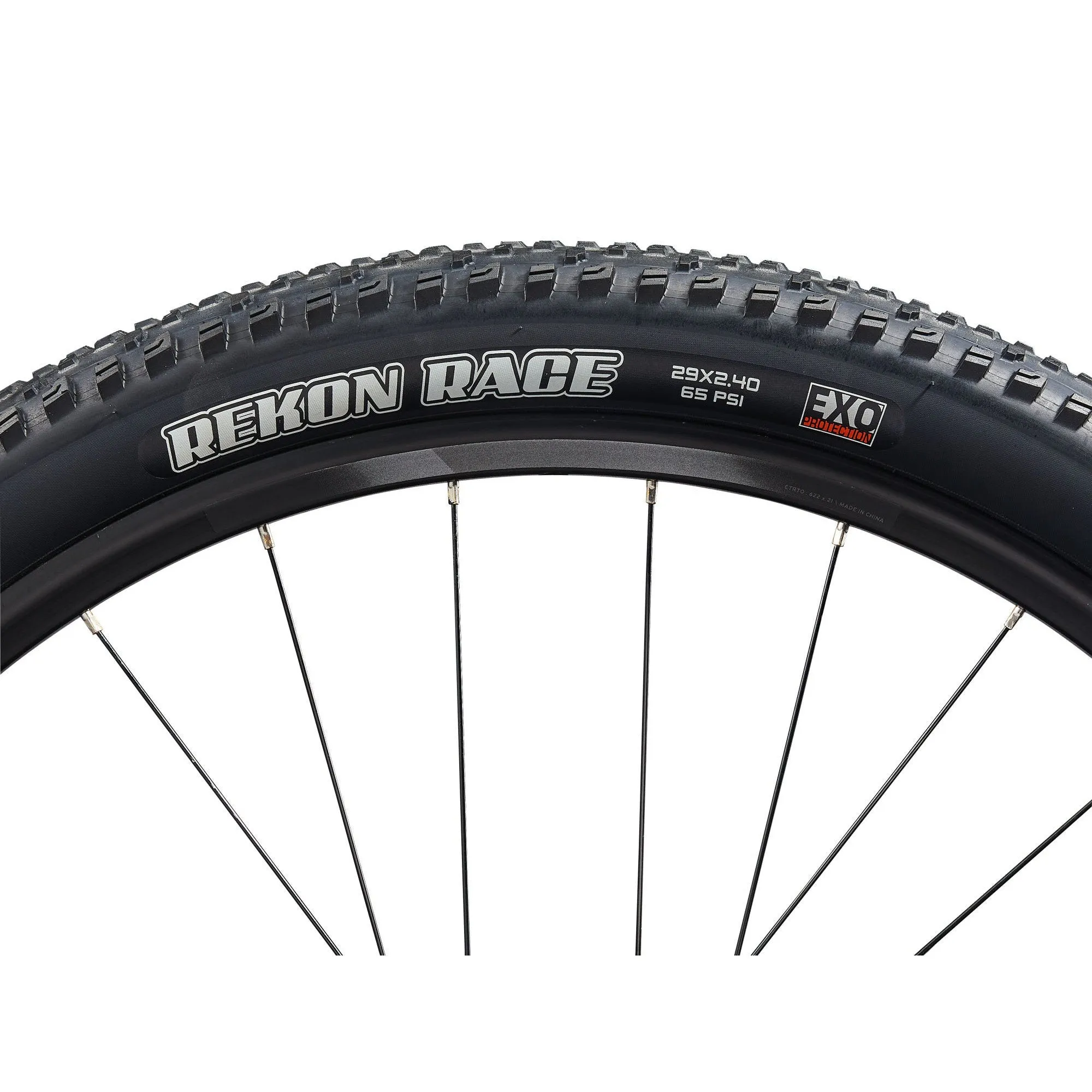

| Tires | Maxxis Rekon Race 27.5" or 29x2.4", wire bead |
| Extras | 2.4" max tyre size, 32t max chainring size |
